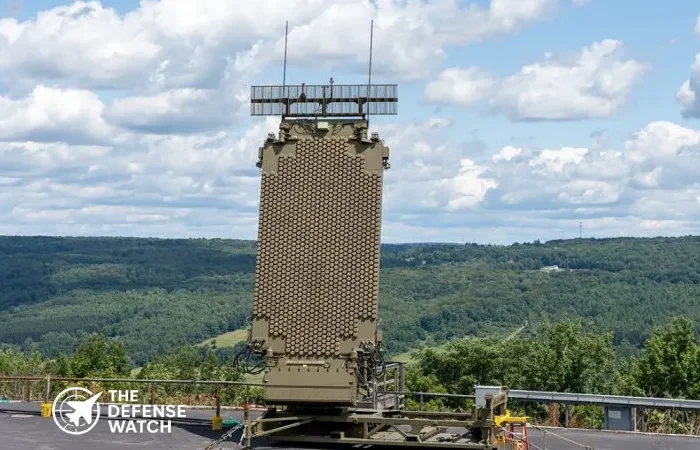

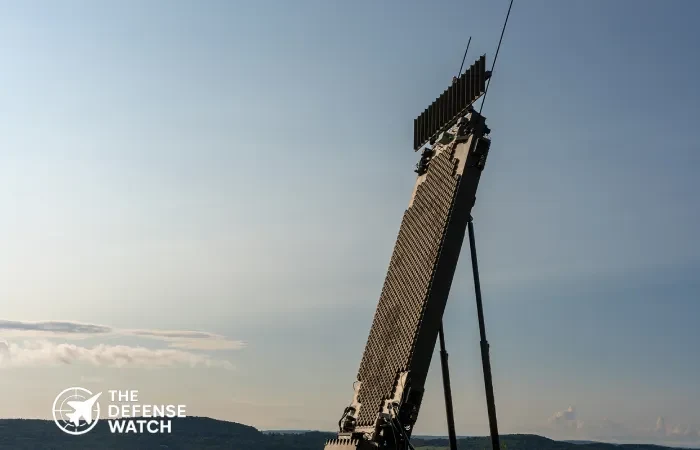

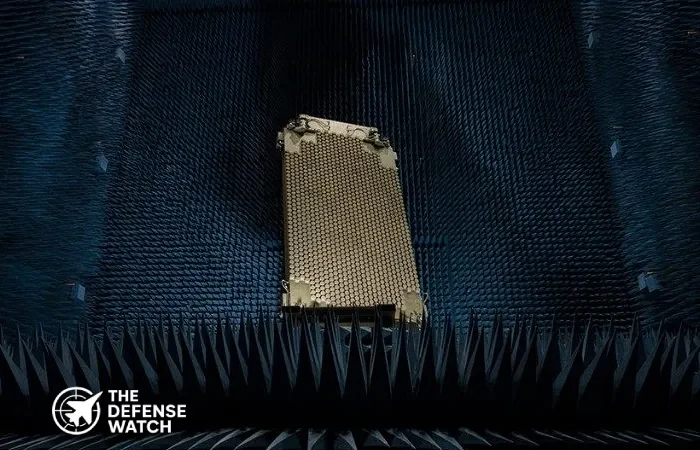

TPY 4 Radar System

Manufacturer: Lockheed Martin
Category: Radar and Jamming Systems
Add to Compare

Detection Range Up to 450 km
Frequency Band S Band
Antenna Type / Technology AESA
Target Tracking Capacity 1,000 plus

Defense Systems Full Specifications

1. General Information

Name / Designation	TPY-4
Manufacturer	Lockheed Martin
Country of Origin	United States
Type / Role	Long Range Air Surveillance Radar
Operational Domain	Ground Based
Status	In Service

2. Technical Specifications

Frequency Band	S Band
Antenna Type	Active Electronically Scanned Array
Antenna Aperture / Size	Large fixed AESA panel
Power Output	Classified
Detection Range	Up to 450 km
Tracking Range	Over 250 km
Target Tracking Capacity	Hundreds simultaneously
Elevation Coverage	Wide elevation coverage
Azimuth Coverage	360 degrees
Beam Steering	Electronic
Pulse Repetition Frequency (PRF)	Adaptive
Resolution	High
Update Rate	Rapid
Clutter Rejection / ECCM	Advanced ECCM

3. Functional Capabilities

Primary Functions	Surveillance, tracking, cueing
Target Types	Aircraft, cruise missiles, UAVs
Integration / Networking	NATO IAMD systems
IFF Capability	Integrated
Data Link / Networking	Standard military data links
Weather & Terrain Resistance	High
Mobility / Mounting	Fixed or semi mobile

4. Physical & Operational Characteristics

Dimensions	Large radar array
Weight	Several tons
Power Requirement	External generator
Cooling System	Liquid cooled
Operating Temperature Range	Military standard
Deployment Platform	Ground installation
Crew Requirement	Small crew

5. Software & Processing

Signal Processor Type	Digital
Processing Speed	Real time
AI / Automation Features	Automated tracking
Data Output / Interface	Open architecture
Software Upgradeability	Yes

6. Operational History

Year Introduced	Early 2020s
Users / Operators	Denmark, NATO partners
Notable Deployments	NATO regional air defense
Successor / Predecessor	Replaces legacy surveillance radars

7. Export / Compliance Data

Export Availability	Yes
ITAR / MTCR Status	ITAR controlled
Cost Estimate	Tens of millions USD

PROS

Long range detection coverage
Full 360 degree AESA scanning
NATO and U.S. integration ready
High target tracking capacity
Modern digital architecture

CONS

High acquisition cost
Requires trained operators
Large physical footprint
Dependent on external power
Limited public performance data

TPY 4 RADA Multi Mission Air Defense Radar

The TPY-4 is Lockheed Martin’s next generation ground based air surveillance radar, developed to strengthen national and NATO integrated air and missile defense networks. Designed to replace aging Cold War era sensors, TPY-4 delivers persistent, long range detection against modern air threats, including aircraft, cruise missiles, and unmanned aerial systems. Its fully digital AESA architecture allows continuous 360 degree coverage while supporting high target density environments.

Selected by Denmark to reinforce NATO deterrence and regional air defense, TPY-4 reflects Lockheed Martin’s focus on scalable, networked sensors optimized for coalition operations and U.S. aligned command and control systems.

Manufacturer

TPY-4 is manufactured by Lockheed Martin, a U.S. based defense and aerospace company. The radar is developed and produced in the United States, with European industrial participation for selected international programs. Lockheed Martin is responsible for system design, radar technology, software, and integration.

Speed and Range

AN/TPY-4 provides detection ranges of up to 450 kilometers against large aerial targets. The radar supports high update rates and simultaneous tracking of hundreds of targets, including high speed and low altitude threats. Electronic beam steering enables rapid repositioning without mechanical movement, improving survivability and reaction time.

- Advertisement -

Cost / Price

Lockheed Martin has not released official pricing. Based on comparable long range AESA surveillance radars, open source estimates place AN/TPY-4 unit cost in the tens of millions of U.S. dollars, depending on configuration and support packages.

FAQs

What is the TPY-4 radar used for?

It is used for long range air surveillance and air defense cueing.

Is TPY-4 an AESA radar?

Yes, it uses solid state AESA technology.

Can TPY-4 detect drones?

Yes, it is optimized for counter UAS missions.

Is TPY-4 mobile?

Yes, it is designed for truck mounted deployment.

Is TPY-4 used by the United States?

Variants and related RADA systems are used by U.S. forces.
