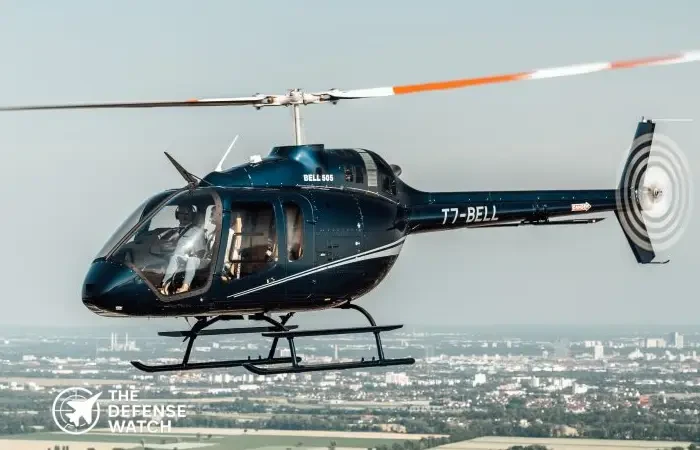

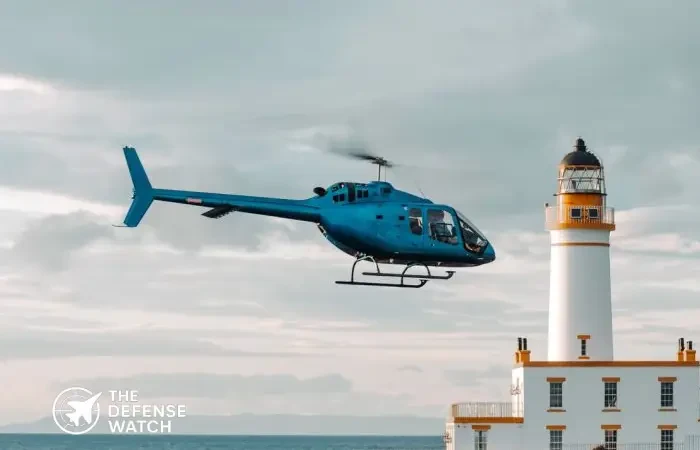

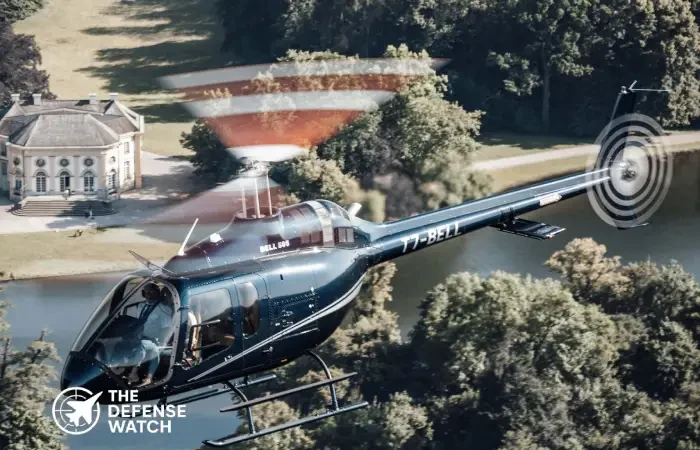

Bell 505 Helicopter

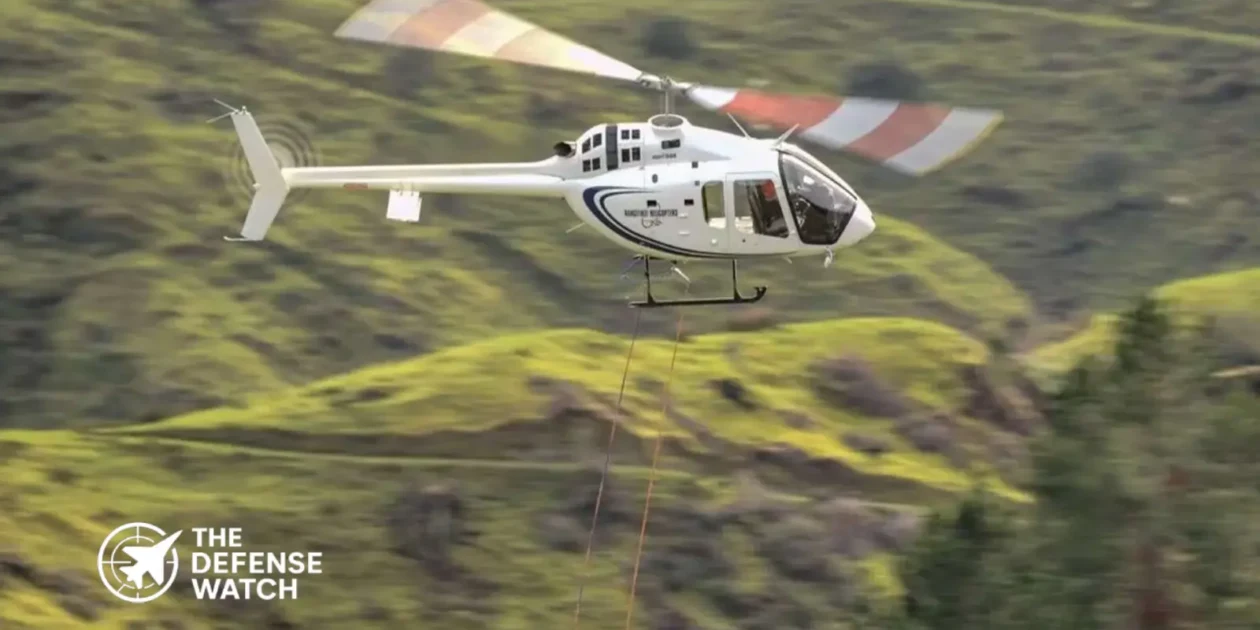

Bell 505 light helicopter in flight configured for military pilot training missions

Manufacturer: Bell Textron Inc.
Category: Military Helicopters
Add to Compare

Advanced Avionics Garmin G1000H glass cockpit
High Maneuverability Yes
Multi-role Capability Training, reconnaissance, utility
Superior Survivability Limited

Full Specifications

1. General Information

Name / Designation	Bell 505 Jet Ranger X
Type / Role	Light Utility / Training
Country of Origin	United States
Manufacturer	Bell Textron Inc.
Introduced / Service Entry	2017
Operational Status	Active
Operators	USA, Canada, Philippines, others

2. Performance

Maximum Speed (Road)	232 km/h
Cruise Speed	213 km/h
Range	566 km
Endurance	~3.5–4 hours
Service Ceiling	5,670 m
Rate of Climb	4.3 m/s

3. Dimensions & Weight

Length	12.95 m
Height	3.25 m
Rotor Diameter	10.16 m
Empty Weight	1,020 kg
Maximum Takeoff Weight (MTOW)	1,680 kg

4. Armament & Payload

Primary Armament	None
Secondary Armament	None
Hardpoints / Weapon Stations	None
Payload Capacity	~680 kg
Countermeasures	None

5. Avionics & Systems

Radar Name	None
Targeting System	Basic observation systems
Navigation System	GPS / Garmin G1000H
Communication System	Standard secure radio
Defensive Systems	None

6. Powerplant

Engines	1 × Turboshaft Engine
Engine Model	Safran Arrius 2R
Power Output	~505 shp
Fuel Capacity	~415 L

7. Crew & Capacity

Crew	1–2
Passenger Capacity	Up to 4
Cabin Configuration	Training / Utility
Cargo Load (Internal/External)	Light cargo capable

8. Operational Capabilities

Mission Types	Training, Reconnaissance, Utility
Night Operation Capability	Yes
All-weather Operation	Limited
Combat Proven	No

Our Rating

The overall rating is based on review by our experts

Payload Capacity 6 / 10
Technology 6 / 10
Combat Effectiveness 8 / 10
Operational Flexibility 8 / 10

PROS

Modern glass cockpit with Garmin G1000H avionics
Low operating and maintenance costs
Excellent visibility for pilot training
Simple and reliable single-engine design
Versatile for training and light utility roles

CONS

Limited payload capacity
Not designed for combat operations
Single-engine reduces redundancy
Restricted range compared to larger helicopters
Minimal survivability features in hostile environments

Bell 505 Jet Ranger X Light Helicopter

The Bell 505 Jet Ranger X is a modern light utility helicopter designed to meet the needs of training, reconnaissance, and light operational missions. Developed as a successor to the legacy JetRanger series, the aircraft combines proven rotary-wing design with updated avionics and improved efficiency. Its compact size, low operating cost, and ease of handling make it a practical platform for military pilot training and light mission support.

Manufacturer

The Bell 505 is produced by Bell Textron Inc., a U.S.-based aerospace manufacturer with a long history in rotary-wing aircraft. Final assembly takes place in Canada, reflecting Bell’s global production approach. The helicopter was introduced into service in 2017 and has since been adopted by multiple military and civilian operators worldwide.

Speed and Range

The Bell 505 offers a maximum speed of approximately 232 km/h (125 knots) and a cruise speed near 213 km/h. It has a range of around 566 km, making it suitable for short- to medium-range missions such as pilot training, surveillance, and liaison tasks. The helicopter also provides stable flight characteristics, which are particularly valuable for new pilot training environments.

Cost/Price

The Bell 505 is positioned as a cost-effective light helicopter, with an estimated unit price ranging between $1.3 million and $1.5 million, depending on configuration. Its relatively low acquisition and operating costs contribute to its appeal for military training fleets and law enforcement agencies.
