F-100 Super Sabre

Manufacturer: North American Aviation
Category: Fighter Jets
Add to Compare

Discontinued

Generation First-generation supersonic jet fighter, commonly classified as second-generation
Maximum Speed Mach 1.3 to 1.4
No. of Engines 1
Radar Range Not publicly specified as a standard figure; varied by equipment and variant

Defense Systems Full Specifications

General Information

Name	North American F-100 Super Sabre
Manufacturer	North American Aviation
Country of Origin	United States
Type / Role	Supersonic fighter and fighter-bomber
Generation	Second generation
Status	Retired from military service
First Flight	May 25, 1953
Introduction / In Service Since	September 1954
Number Built	2,294
Operators	United States, France, Turkey, Denmark, Taiwan

Dimensions & Structure

Length	50 ft 2 in (15.29 m), approximately; dimensions vary by source and variant
Wingspan	38 ft 9 in (11.81 m)
Height	16 ft 2 in (4.93 m)
Wing Area	Approximately 400 sq ft (37.2 m²)
Empty Weight	Approximately 21,000 lb (9,525 kg)
Maximum Takeoff Weight (MTOW)	Approximately 34,800 lb (15,785 kg), configuration dependent
Internal Weapons Bay	None
External Hardpoints	6 underwing stations on applicable variants

Performance

Maximum Speed	Approximately 926 mph (1,490 km/h) for the F-100D
Range	Approximately 1,970 miles (3,170 km), depending on profile
Combat Radius	Mission dependent; no single universal figure
Service Ceiling	Approximately 55,000 ft (16,764 m)
Rate of Climb	Variant and conditions dependent; a consistent authoritative figure is not established here
Thrust-to-Weight Ratio	Configuration dependent; not listed as a single verified figure
G Limits	Variant and flight condition dependent; no single verified figure provided

Powerplant

Engine Type	Pratt & Whitney J57 afterburning turbojet
No. of Engines	1
Thrust (each)	Approximately 16,000 lbf (71.2 kN) with afterburner on the F-100D
Thrust Vectoring	No
Fuel Capacity	Varied by variant and external tank configuration; a single figure is not provided

Armament

Gun	Four 20 mm M39 cannons on most single-seat combat variants
Missiles (Air-to-Air)	AIM-9 Sidewinder
Missiles (Air-to-Ground)	AGM-12 Bullpup on compatible configurations
Bombs	Conventional bombs and certain nuclear weapons, subject to variant and mission configuration
Hardpoints	Six external stations on applicable fighter-bomber variants
Payload Capacity	Up to approximately 7,040 lb (3,193 kg) of external ordnance on the F-100D

Avionics & Systems

Radar	Early-generation ranging and fire-control equipment varied by variant; no modern multimode radar
Radar Range	No verified universal figure
Electronic Warfare (EW) System	Period-specific warning and countermeasure equipment on certain variants
Targeting System	Conventional gunsight and bombing systems; low-altitude bombing equipment on the F-100D
Helmet Display	None
Navigation	Period navigation instruments and radio navigation aids
Autopilot / AI Assistance	Autopilot on applicable variants; no AI assistance
Communication	Conventional military radio systems of the period

Stealth & Technology

Radar Cross Section (RCS)	Not established as a standardized public figure
Stealth Features	None designed for radar stealth
Infrared Signature Reduction	No dedicated modern infrared signature reduction system
Sensor Fusion	None
Networking Capabilities	No modern tactical data-link network capability

Variants

Special Export Versions

Dedicated fighter-bomber

Operational History

Major Conflicts / Deployments	Vietnam War, Cold War deployments, Cuban Missile Crisis-era operations
Notable Operators	U.S. Air Force, U.S. Air National Guard, France, Turkey, Denmark, Taiwan
Combat Proven?	Yes
Mission Types	Air defense, fighter operations, ground attack, close air support, reconnaissance conversions, and specialized suppression of enemy air defenses

Cost & Program

Unit Cost	Approximately $697,000 to $704,000 in historical figures for particular configurations; not a modern price
Development Cost	A directly comparable total program development cost is not established here
Program Name	F-100 Super Sabre development program
Funding Countries	United States

Additional Information

Upgrades Planned	None; the aircraft is retired
Future Replacement	Historically succeeded by later fighter and attack aircraft, including the F-4 Phantom II and A-7 Corsair II in relevant roles
Export Restrictions	Historical military export approvals applied; no current operational export program
Notable Achievements	First production aircraft capable of supersonic flight in level flight; an important early member of the USAF Century Series
Competitors	MiG-19, Dassault Super Mystère, and other contemporary supersonic fighters

PROS

First production fighter capable of supersonic flight in level flight.
High speed and strong engine performance for its era.
Four 20 mm cannons on most single-seat combat variants.
Could carry bombs, rockets, and air-to-air missiles.
Proven in extensive Vietnam War fighter-bomber operations.

CONS

Early aircraft suffered from serious handling and stability problems.
Limited situational awareness compared with modern fighters.
No modern AESA radar, sensor fusion, or stealth design.
Relatively high fuel consumption with afterburner.
Vulnerable to modern air defenses and advanced fighter aircraft.

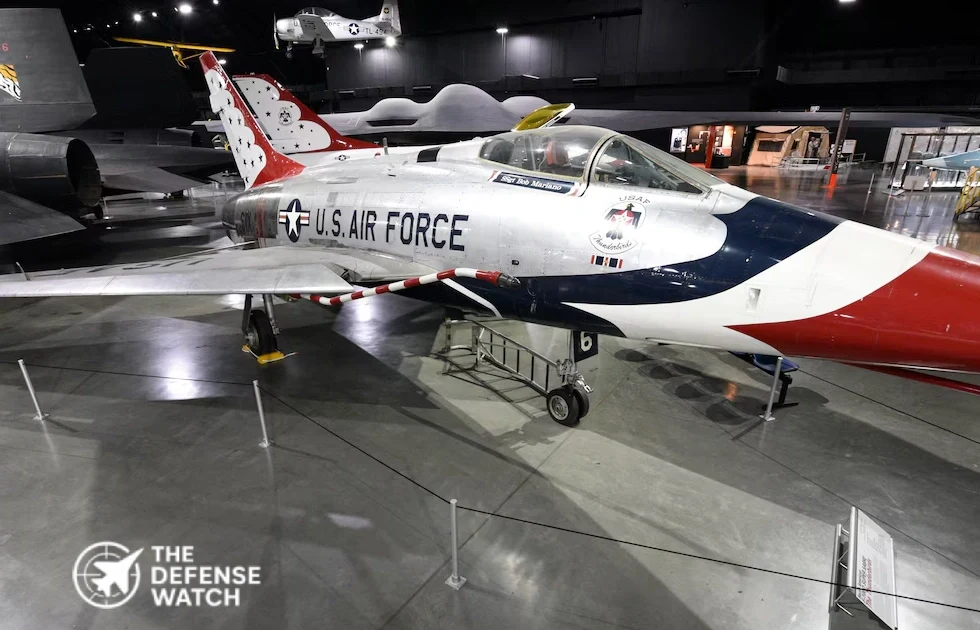

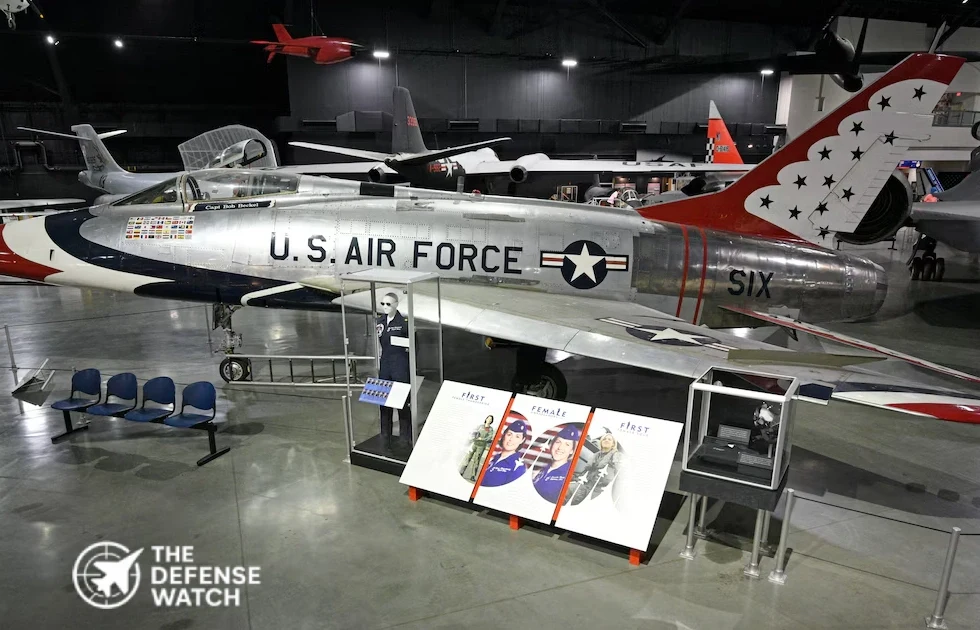

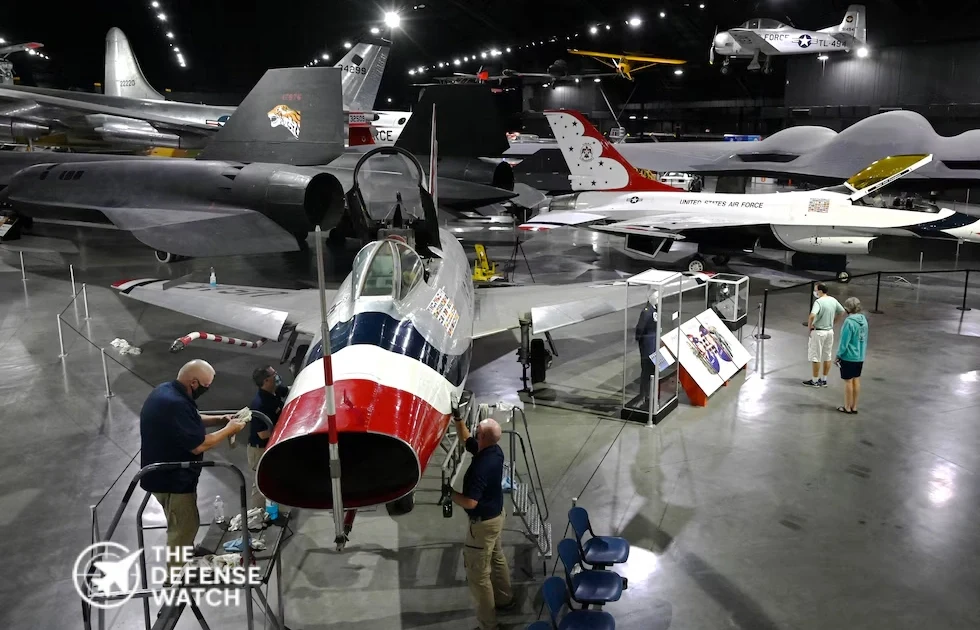

F-100 Super Sabre: Supersonic Fighter Aircraft

The North American F-100 Super Sabre was a landmark in U.S. military aviation, becoming the first fighter aircraft in the U.S. Air Force to enter operational service with sustained supersonic capability. Developed during the early Cold War, it was designed to succeed the F-86 Sabre and provide improved speed, altitude performance, and combat capability against emerging Soviet aircraft.

The F-100 first flew on May 25, 1953, and entered U.S. Air Force service in September 1954. Its swept-wing design and powerful turbojet engine enabled it to exceed Mach 1 in level flight, representing a major advance in fighter development.

Manufacturer and Technology

Developed and manufactured by North American Aviation in the United States, the F-100 initially served as an air-superiority fighter. Later versions, particularly the F-100D, were optimized for fighter-bomber missions. The aircraft could carry conventional bombs, rockets, and nuclear weapons configured for its mission. Four 20 mm M39 cannons provided internal gun armament.

The Super Sabre used a single Pratt & Whitney J57 turbojet engine. Although it lacked modern radar-guided weapons, stealth features, and advanced digital avionics, its high-speed performance and ability to operate from conventional air bases made it a significant Cold War aircraft.

- Advertisement -

Speed and Range

The F-100D could reach approximately 864 mph (Mach 1.3) at altitude, depending on conditions and configuration. Its ferry range with external fuel tanks was around 1,990 miles, while its operational combat radius was substantially shorter and varied with payload, altitude, and mission profile.

Operational History

The F-100 saw extensive combat during the Vietnam War, conducting ground-attack, close-air-support, and escort missions. It also served with several NATO and allied air forces. Operational experience exposed handling challenges, especially during takeoff and landing, but the aircraft remained an important part of U.S. tactical aviation through the 1960s and early 1970s.

Cost and Price

The F-100 is no longer in production or military service. Historical unit prices varied by model and production period, so a single figure does not represent every variant. Today, surviving aircraft are primarily museum exhibits or privately owned warbirds rather than operational combat aircraft.

Variants

Variant	Primary Role
F-100A	Initial single-seat fighter
F-100C	Improved fighter-bomber with additional weapons and fuel provisions
F-100D	Dedicated fighter-bomber and the most widely produced variant
F-100F	Two-seat trainer and operational aircraft used for specialized missions
RF-100A	Reconnaissance conversion for specialized photographic missions
