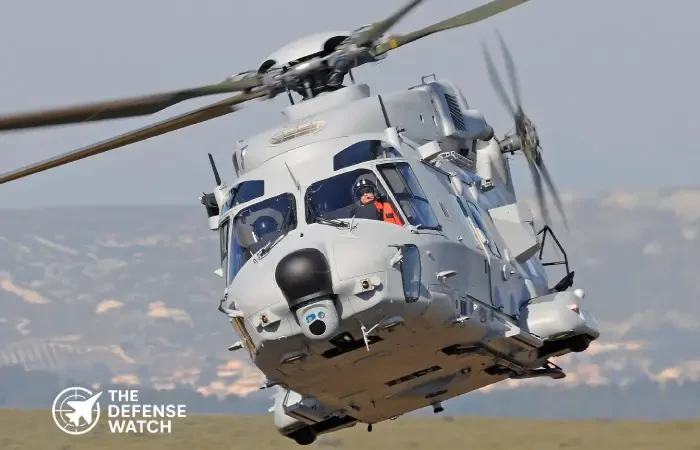

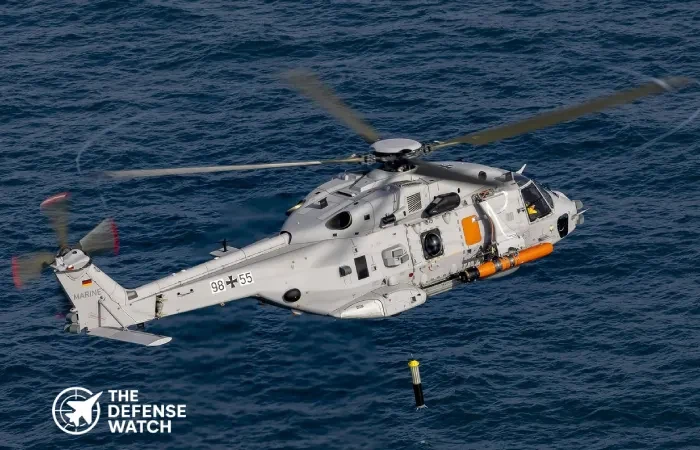

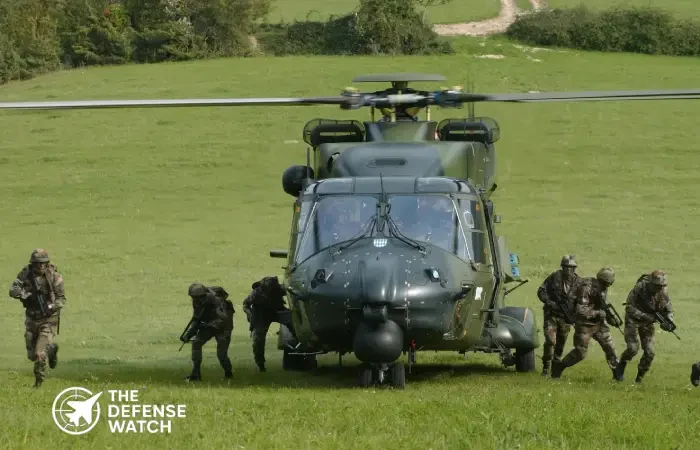

NH90 NFH/TTH Helicopter

Full Specifications

NH90 NFH/TTH: Europe’s Versatile Multi-Role Military Helicopter

The NH90 NFH/TTH represents a cornerstone of modern European military rotary-wing aviation, designed to meet stringent NATO requirements for a medium-sized, multi-role helicopter capable of operating in challenging land and maritime environments. Introduced into service in the late 2000s, this twin-engine platform combines advanced composite construction, full fly-by-wire flight controls, and highly integrated mission systems to deliver exceptional performance for troop transport, anti-submarine warfare (ASW), search and rescue (SAR), and utility missions. Its modular design allows seamless adaptation between the Tactical Transport Helicopter (TTH) variant for land-based operations and the NATO Frigate Helicopter (NFH) for shipborne naval roles.

Manufacturer

The NH90 is developed and produced by NHIndustries, a collaborative joint venture comprising Airbus Helicopters (France/Germany), Leonardo Helicopters (Italy), and GKN Fokker Aerostructures (Netherlands). This European partnership ensures high interoperability among NATO forces.

Speed and Range

Powered by two turboshaft engines (typically Rolls-Royce Turbomeca RTM322 or General Electric CT7 variants), the NH90 achieves a maximum speed of approximately 300 km/h and a cruise speed around 260 km/h. The TTH variant offers a range of about 800 km, while the NFH extends to roughly 1,000 km, with ferry range reaching up to 1,600 km using auxiliary tanks. Endurance is up to 5 hours, supported by a service ceiling of 6,000 m.

Cost/Price

Unit costs typically range from $30–50 million depending on configuration and customer-specific equipment, with higher prices for fully equipped NFH naval variants. Operating costs have been reported variably between $10,000–$30,000+ per flight hour across operators, influenced by maintenance and utilization rates.

The helicopter features extensive use of composites for reduced weight and corrosion resistance, making it particularly suitable for maritime operations. Advanced avionics include a glass cockpit with multi-function displays, night vision compatibility, and integrated sensors for all-weather, day-and-night missions. It supports up to 20 troops in the TTH configuration or specialized naval systems in the NFH, with significant external sling load capacity. Over 500 units have been delivered to multiple nations, accumulating hundreds of thousands of flight hours in operational service.
