TPS-77 MRR Radar System

Manufacturer: Lockheed Martin
Category: Radar Systems
Add to Compare

Detection Range Over 470 km
Frequency Band L Band
Antenna Type / Technology AESA
Target Tracking Capacity 1000 plus targets

Full Specifications

1. General Information

Name / Designation	TPS-77 MRR
Manufacturer	Lockheed Martin
Country of Origin	United States
Type / Role	Long range air surveillance radar
Operational Domain	Air
Status	In active service

2. Technical Specifications

Frequency Band	L Band
Antenna Type	Active electronically scanned array
Antenna Aperture / Size	Large fixed planar array
Power Output	Classified, solid state
Detection Range	470 km plus
Tracking Range	Long range 3D coverage
Target Tracking Capacity	1000 plus
Elevation Coverage	Up to 70 degrees
Azimuth Coverage	360 degrees
Beam Steering	Electronic
Pulse Repetition Frequency (PRF)	Variable
Resolution	High 3D resolution
Update Rate	Seconds
Clutter Rejection / ECCM	Advanced ECCM

3. Functional Capabilities

Primary Functions	Early warning, air surveillance
Target Types	Aircraft, UAVs, cruise missiles
Integration / Networking	Integrated air defense systems
IFF Capability	Yes
Data Link / Networking	NATO compatible links
Weather & Terrain Resistance	High
Mobility / Mounting	Fixed or transportable

4. Physical & Operational Characteristics

Dimensions	Classified
Weight	Heavy
Power Requirement	External generator or grid
Cooling System	Environmental control unit
Operating Temperature Range	Wide climatic range
Deployment Platform	Ground based
Crew Requirement	Small trained crew

5. Software & Processing

Signal Processor Type	Digital solid state
Processing Speed	Real time
AI / Automation Features	Automated tracking and classification
Data Output / Interface	C2 network interfaces
Software Upgradeability	Modular upgrades

6. Operational History

Year Introduced	Early 2000s
Users / Operators	NATO and allied air forces
Notable Deployments	Air sovereignty missions
Successor / Predecessor	TPS-75 predecessor

7. Export / Compliance Data

Export Availability	Limited export
ITAR / MTCR Status	ITAR controlled
Cost Estimate	Tens of millions USD

Our Rating

The overall rating is based on review by our experts

7.8

Range & Endurance 8 / 10
Stealth Capability 7 / 10
Technology 8 / 10
Maintenance Efficiency 8 / 10

PROS

Long range 3D air surveillance
AESA technology with high reliability
Strong ECCM performance
Network ready for modern air defense
Proven operational record

CONS

High acquisition cost
Requires trained technical crews
Large logistical footprint
Not optimized for short range air defense
Export subject to U.S. controls

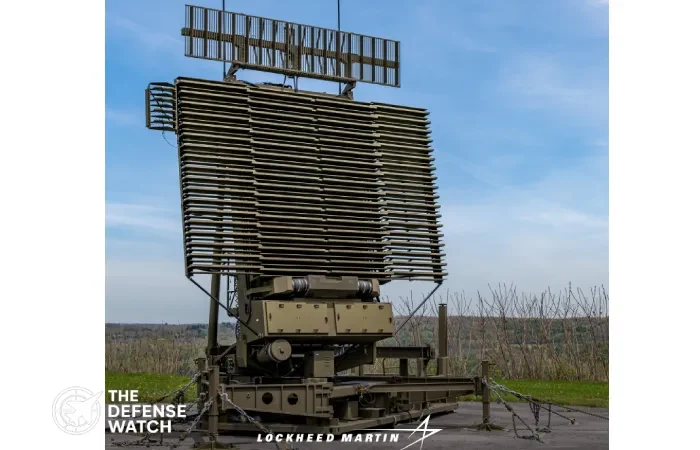

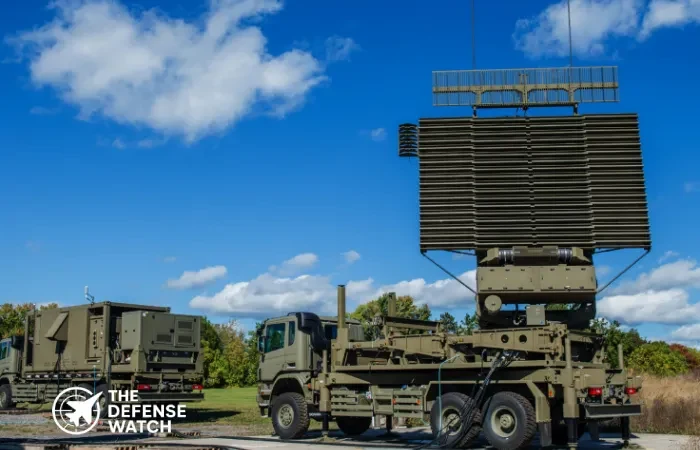

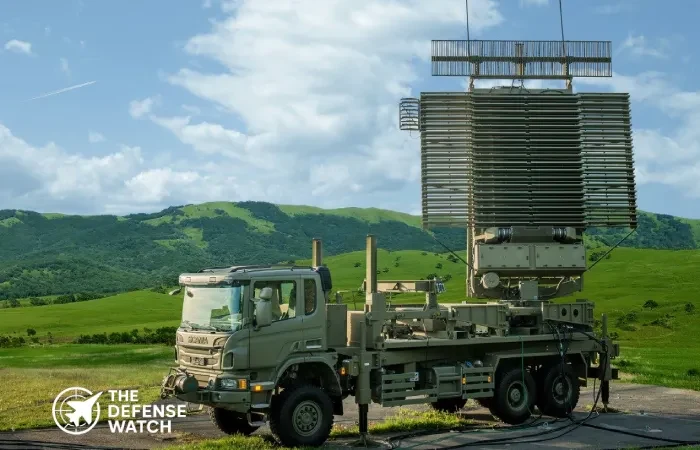

TPS-77 MRR Long Range Air Surveillance Radar

The TPS-77 Multi Role Radar is a modern long range air surveillance system designed to give air forces reliable early warning and airspace control in contested environments. Built for mobility and survivability, the radar supports national air defense, expeditionary operations, and joint force integration. It is widely used by U.S. allies for persistent monitoring of aircraft, cruise missiles, and unmanned threats.

Manufacturer

The TPS-77 MRR is developed and produced by Lockheed Martin, a U.S. defense prime contractor with deep experience in radar, sensors, and integrated air and missile defense systems.

Speed and Range

The radar is optimized for long range detection rather than speed tracking of a single target type. It can detect and track fast moving fighter aircraft, ballistic trajectories at altitude, and low flying cruise missiles. Maximum instrumented detection range exceeds 470 kilometers, with full 360 degree azimuth coverage and high elevation tracking for layered air defense.

Cost / Price

Exact pricing depends on configuration, logistics, and support packages. Open source estimates place unit costs in the tens of millions of U.S. dollars, typically bundled within broader air defense or command and control programs.

Operational Use

TPS-77 MRR supports air sovereignty missions, early warning, ground controlled interception, and integration with surface to air missile systems. Its solid state AESA design improves reliability while reducing maintenance demands in harsh climates.

FAQs

What is the TPS-77 MRR used for?

It provides long range air surveillance and early warning for air defense networks.

Is TPS-77 an AESA radar?

Yes, it uses an active electronically scanned array.

Can TPS-77 detect stealth aircraft?

It improves detection of low observable targets, though it is not a dedicated counter stealth radar.

Is TPS-77 mobile?

Yes, it is transportable and can be deployed on fixed or mobile platforms.

Who operates TPS-77 radars?

Several NATO and allied air forces across Europe, Asia, and the Middle East.
