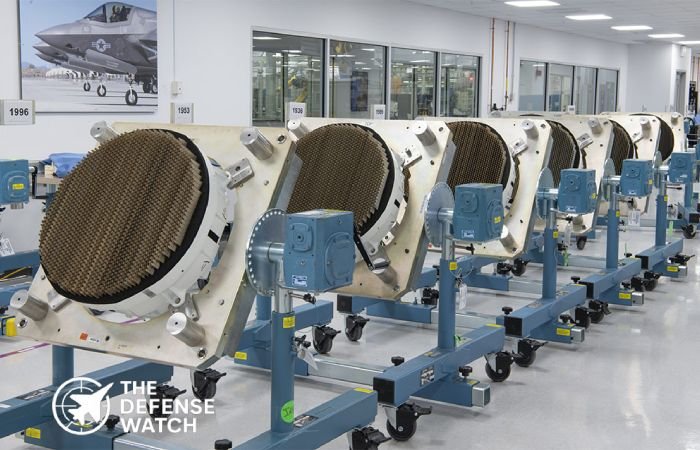

AN/APG‑81 AESA Fire‑Control Radar
The AN/APG‑81 radar is the cutting‑edge eye in the nose of the F‑35 Lightning II, delivering world-class situational awareness and fire‑control capabilities that define fifth‑generation air superiority. Designed by Northrop Grumman, this active electronically scanned array (AESA) radar builds on decades of U.S. innovation to give the F‑35 a decisive edge in both air-to-air and air-to-ground combat.
Manufacturer, Origin & Purpose
Originating in the United States, the AN/APG‑81 was developed by Northrop Grumman Electronic Systems specifically for the Lockheed Martin F‑35 Lightning II program. Its purpose: to function as a multifunction fire‑control radar, as well as an electronic warfare (EW) sensor, seamlessly supporting air‑to‑air engagements, surface attack, reconnaissance, and suppression of enemy defenses.
Capabilities & Technology
The radar comprises approximately 1,676 transmit/receive modules, enabling agile beam steering and rapid mode switching. It supports long‑range detection (reported over 150 km) in active and passive modes. In air-to-air, it performs search‑while‑track (TWS), single-target tracking, and velocity-search, among other modes. On the ground, its synthetic aperture radar (SAR) provides ultra-high-resolution mapping, while its ground moving target indicator (GMTI) tracks moving vehicles.
A signature strength of the AN/APG-81 is its integrated electronic warfare. It functions natively as an electronic support measures (ESM) receiver, a jammer (EA), and features electronic protection (EP) capabilities—all within the same AESA array. This gives the F‑35 an organic way to degrade enemy radars and air defenses.
Operational Use
First flown in 2005 aboard a Northrop Grumman test-bed and later integrated into F‑35s by 2010, the AN/APG-81 has logged hundreds of flight hours and proven its reliability and performance. The radar has earned acclaim for tracking long-range targets, performing high-resolution SAR, and resisting jamming.
It is deeply integrated into the F‑35’s sensor fusion architecture; radar data fuses with inputs from other systems (like the Distributed Aperture System) to give pilots a unified tactical picture.
AN/APG‑81 Radar Price
While the exact unit cost of the AN/APG‑81 radar is not publicly disclosed due to defense contracting sensitivities, it is part of the broader F‑35 avionics package. Its production has been scaled, with over 1,000 units delivered by Northrop Grumman as of recent years.
FAQs
The radar is built exclusively for the F-35 Lightning II fighter family.
It supports air-to-air, air-to-ground, synthetic aperture radar (SAR) mapping, ground moving target tracking, and electronic warfare (EW) functions.
The radar is developed and produced by Northrop Grumman in the United States.
Its solid-state AESA design eliminates moving parts, uses replaceable modules, and achieves high reliability with flight line repair times under 30 minutes.
Yes. A newer radar, the AN/APG-85, is being developed for upcoming F‑35 Block 4 aircraft.
