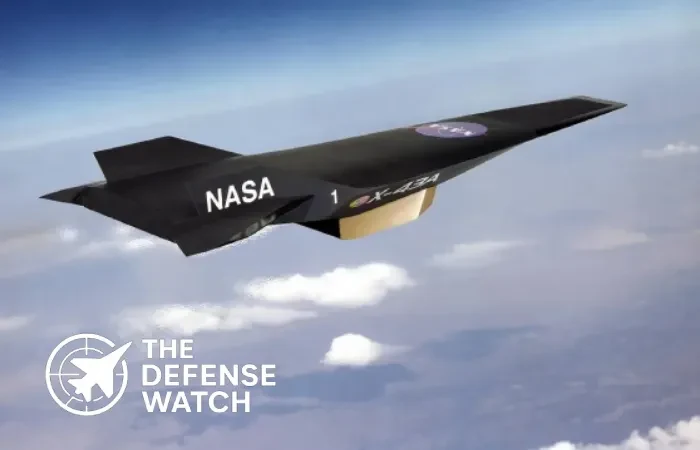

NASA X-43A Aircraft

Manufacturer: Boeing Defense
Category: Bombers & Strategic Aircraft
Add to Compare

Maximum Speed Mach 9.6 (~7,000 mph)
Range Short (test flight only)
Payload Capacity N/A
Crew Unmanned

Full Specifications

1. General Information

Name	NASA X-43A
Manufacturer	NASA / Boeing
Country of Origin	United States
Introduction / In Service Since	2001 (Test Flights)
Status	Retired
Category	Experimental Hypersonic Aircraft
Crew	Unmanned
Unit Cost	~$50 million per test vehicle

2. Dimensions & Structure

Length	12 ft (3.66 m)
Wingspan	5 ft (1.52 m)
Height	1.5 ft (0.46 m)
Wing Area	5 sq ft (0.46 m²)
Empty Weight	1,210 lb (550 kg)
Maximum Takeoff Weight (MTOW)	N/A (rocket-launched)

3. Performance

Maximum Speed	Mach 9.6
Range	Short; test flight only
Combat Radius	N/A
Service Ceiling	110,000 ft (33,500 m)
Rate of Climb	N/A

4. Powerplant

Engine Type	Hydrogen-fueled scramjet
Thrust (per engine)	10,000 lbf (44 kN)
Total Thrust	10,000 lbf

5. Payload & Armament

Internal Payload Capacity	N/A
Weapons Bay	None
Compatible Weapons	None
Hardpoints	None

6. Avionics & Systems

Radar System	N/A
Navigation	Inertial + GPS
Electronic Warfare (EW)	None
Stealth Features	Low radar signature due to small size

7. Operational History

Primary Operator	NASA
Conflict Usage	None
Notable Missions	Mach 7–9.6 hypersonic test flights (2001–2004)

8. Additional Information

Variants	X-43A-1, X-43A-2
Successor / Future Replacement	X-51 Waverider
Notable Features	Scramjet propulsion, Mach 9+ speed
Estimated Operational Life	N/A (test aircraft)

Our Rating

The overall rating is based on review by our experts

8.6

Stealth Capability 9 / 10
Payload Capacity 9 / 10
Range & Endurance 9 / 10
Electronic Warfare 8 / 10
Maintenance Efficiency 8 / 10

PROS

Achieved record-breaking hypersonic speeds (Mach 9.6)
Validated scramjet engine technology
Lightweight and compact unmanned design
Advanced aerodynamics and heat-resistant materials
Paved the way for future hypersonic military and civilian aircraft

CONS

Experimental and unmanned; no operational combat role
Extremely high development cost per test vehicle
Limited flight duration and range
Launch dependent on carrier rocket
Data primarily applicable for research, not immediate deployment

NASA X-43A Hypersonic Research Aircraft

Developed jointly by NASA’s Langley Research Center, Dryden Flight Research Center (now Armstrong Flight Research Center), and aerospace contractors including Boeing, the X-43A is a testament to U.S. innovation in experimental flight research. Its primary goal was to validate scramjet propulsion technology for future military and civilian applications, including ultra-fast aircraft and potential hypersonic missiles.

Capabilities and Technology

The X-43A is an unmanned, winged vehicle measuring 12 feet in length, launched from a Pegasus rocket before igniting its hydrogen-fueled scramjet engine. It holds the world record for the fastest jet-powered aircraft, achieving speeds up to Mach 9.6. Despite its high speed, the X-43A was not armed and had no combat role, serving purely as a testbed for aerodynamic design, high-temperature materials, and engine performance under extreme conditions. Its flight data contributed to the development of next-generation hypersonic vehicles, including the potential for future reconnaissance and strike platforms.

Operational Use

The X-43A flew a series of successful test missions between 2001 and 2004, demonstrating stable hypersonic flight and confirming the viability of scramjet propulsion. While it never entered production, its lessons directly influence modern U.S. hypersonic missile and aircraft research programs.

NASA X-43A Price in US

The NASA X-43A represents a cutting-edge experimental aircraft developed by NASA and the U.S. aerospace industry to explore hypersonic flight at speeds previously unattainable by conventional aircraft. Launched in the early 2000s as part of NASA’s Hyper-X program, the X-43A was engineered to test air-breathing scramjet engines capable of propelling vehicles at speeds exceeding Mach 9, or roughly 7,000 mph.

FAQs – NASA X-43A

Did the X-43A reach Mach 10?

No, the X-43A did not reach Mach 10. Its top speed was approximately Mach 9.6 (about 7,000 mph), setting a record for the fastest jet-powered aircraft in the world.

What happened to the X-43A?

The X-43A was an experimental, unmanned hypersonic aircraft used for research flights between 2001 and 2004. After successfully completing its test missions, the program ended, and the aircraft were retired. Data from the X-43A has been used to inform future hypersonic aircraft and missile programs.

How much does the NASA X-43A cost?

Each X-43A test vehicle had an estimated cost of around $50 million, factoring in development, materials, and flight operations. The program was purely experimental and not a production aircraft.

How long would it take the NASA X-43A to fly around the world?

If it could maintain its top speed of Mach 9.6 continuously, the X-43A could theoretically circumnavigate the Earth in roughly 1.5–2 hours. However, the X-43A was a short-duration test vehicle and not designed for sustained global flight.

NASA X-43 price

The program’s cost per individual X-43A test vehicle was approximately $50 million, though total program costs—including development and multiple launches—were significantly higher.

Is the NASA X-43 real?

Yes, the NASA X-43A was a real unmanned experimental aircraft. It successfully flew hypersonic test missions and demonstrated scramjet propulsion, making it a key milestone in aerospace research.
