AESA Radar: How Active Electronically Scanned Arrays Are Reshaping Modern Warfare

Why AESA Radar Matters in Modern Warfare

AESA radar, short for Active Electronically Scanned Array radar, has become one of the most important sensor technologies in modern military aviation, air defense and naval warfare. Instead of mechanically moving a radar antenna to point its beam, an AESA system uses numerous electronic transmit and receive elements to steer radar energy rapidly across the battlespace.

That difference has major operational consequences.

Modern forces increasingly operate in environments filled with low observable aircraft, cruise missiles, unmanned aerial systems, electronic jamming, long range weapons and dense electromagnetic activity. In such conditions, radar is no longer simply a device for finding aircraft. It is part of a larger network of sensors, weapons, electronic warfare systems and command and control architecture.

AESA technology supports that shift by allowing a radar to perform several functions with high speed and flexibility. Depending on the design, a single array can support air to air detection, air to ground mapping, maritime surveillance, target tracking, electronic support and electronic attack functions.

The technology is now deployed across multiple generations of military systems. Northrop Grumman, RTX’s Raytheon business, Lockheed Martin, Leonardo and other major defense companies are developing AESA based systems for fighters, ground based air defense and naval platforms. Northrop Grumman, for example, supplies the AN/APG-81 AESA radar for the F-35 Lightning II and the AN/APG-77 for the F-22 Raptor.

What Is an AESA Radar?

An AESA radar consists of a large number of individual transmit/receive modules, often abbreviated as T/R modules. These modules work together as an electronically controlled array.

Traditional mechanically scanned radars generally move an antenna or reflector to change the direction of the radar beam. AESA systems instead control the phase and amplitude of signals across their individual modules.

By adjusting these signals, the radar can direct and shape its beam without physically moving the antenna.

This allows the radar to rapidly shift between different portions of the sky or surface environment. It can also allocate radar resources to different missions according to the tactical situation.

Northrop Grumman describes AESA arrays as using miniature transmit/receive modules that are electronically steered together, allowing nearly instantaneous beam repositioning. The company also notes that AESA systems eliminate the moving parts associated with mechanically scanned designs.

The practical result is not simply a faster radar. It is a more flexible sensor.

How AESA Radar Works

The basic operating process involves several major stages.

1. Signal Generation

The radar generates radio frequency energy using an exciter and associated processing hardware.

2. Transmission Through T/R Modules

The signal is distributed across many individual transmit/receive modules. Each module can contribute a controlled amount of energy to the overall radar beam.

3. Electronic Beam Steering

The radar adjusts the phase relationships between signals from individual modules. This causes the combined electromagnetic energy to reinforce in the desired direction.

The beam can therefore be moved without physically turning the antenna.

4. Echo Reception

When the radar signal encounters an object, part of the energy is reflected back toward the array.

The T/R modules receive the returning signals and send information to the radar’s digital processing architecture.

5. Signal Processing

Advanced processors analyze the returned signals to determine information such as range, direction, velocity and other target characteristics.

Modern processing techniques also help distinguish genuine targets from clutter, interference and electronic deception.

6. Track Formation

The radar can combine successive detections into tracks. Multiple tracks can be maintained simultaneously, allowing crews and combat systems to build a broader picture of the battlespace.

Key Technical Advantages of AESA Radar

The most important advantage of AESA technology is flexibility.

Rapid Beam Steering

Because the radar does not depend on mechanical antenna movement, its beam can shift rapidly between targets and search sectors.

This is especially valuable when an aircraft faces multiple threats approaching from different directions.

Multifunction Operation

A modern AESA radar can perform several missions using software controlled waveforms and signal processing.

Depending on the system, these can include:

• Air to air search
• Air to air target tracking
• Air combat support
• Air to ground mapping
• Maritime surveillance
• Synthetic aperture radar imaging
• Ground moving target indication
• Terrain mapping
• Electronic support
• Electronic attack
• Missile support and target illumination functions

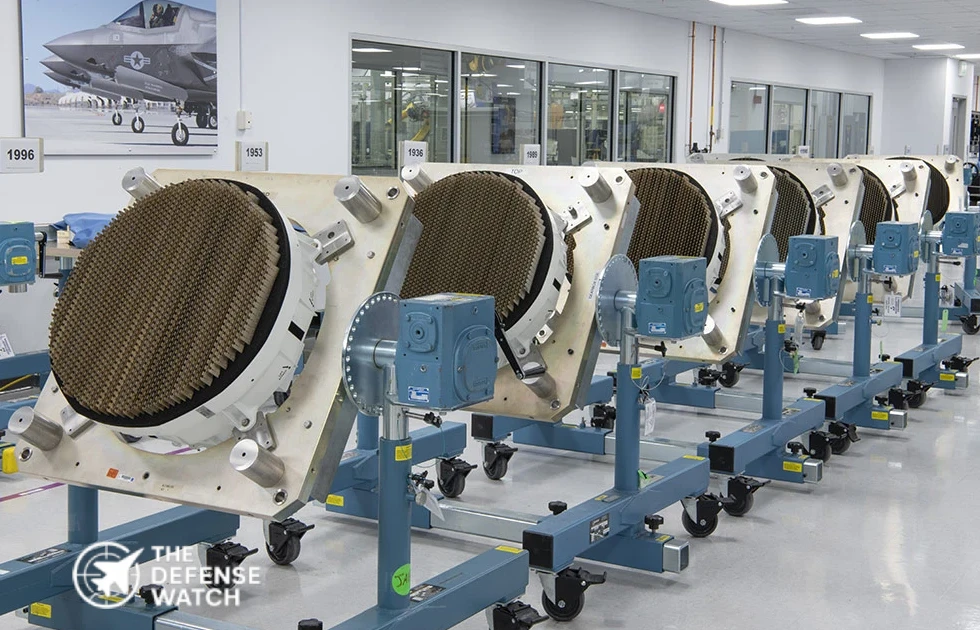

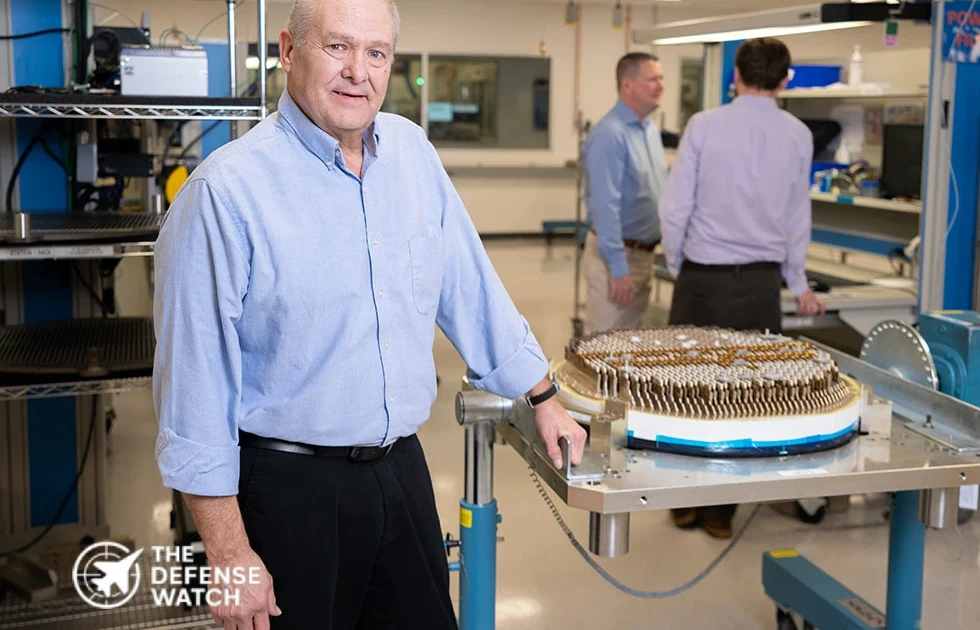

The AN/APG-81 on the F-35 is an example of this multifunction approach. Northrop Grumman states that the radar supports air to air and air to ground missions and includes synthetic aperture radar mapping and electronic warfare functions.

Electronic Protection

Modern combat aircraft can encounter hostile jamming and other forms of electromagnetic interference.

AESA radars can use techniques such as agile waveforms, adaptive beam control, frequency management and advanced signal processing to maintain radar performance in contested electromagnetic environments.

Exact techniques and performance parameters are frequently classified, so public sources do not provide a complete picture of the electronic warfare capabilities of operational AESA systems.

Reliability

The absence of a mechanically rotating antenna can reduce mechanical failure points.

Northrop Grumman says the solid state architecture of the AN/APG-81, combined with replaceable subassemblies, has improved reliability and maintenance characteristics compared with legacy systems.

AESA Radar and Gallium Nitride

One of the important developments in modern radar engineering is the growing use of gallium nitride, or GaN, semiconductor technology.

Earlier AESA generations commonly relied on gallium arsenide, or GaAs, semiconductor technology. GaN offers higher power density and can improve efficiency and thermal performance when appropriately integrated into a radar design.

The technology is increasingly appearing in modern radar upgrades.

RTX’s APG-82(V)X AESA radar, for example, uses GaN technology and is designed to provide advanced air to air, air to ground and electronic warfare capabilities for fighter aircraft.

Lockheed Martin’s TPY-4 ground based radar also uses GaN transmitter technology alongside an AESA architecture and advanced digital processing.

However, GaN does not automatically make every radar superior. Radar performance depends on the complete system, including antenna size, power generation, cooling, receiver sensitivity, processing, waveform design, software and integration.

AESA Radar on Fifth Generation Fighters

The relationship between AESA radar and fifth generation aircraft is particularly important.

F-35 AN/APG-81

The F-35 Lightning II uses Northrop Grumman’s AN/APG-81 AESA radar as a central component of its sensor suite.

The radar is integrated with the aircraft’s other sensors and mission systems rather than operating as an isolated sensor. This allows radar information to contribute to the aircraft’s broader sensor fusion architecture.

Northrop Grumman says more than 1,000 APG-81 radars had been produced and delivered by December 2022. The company also identifies the radar as a key component of the F-35’s advanced sensor suite.

F-22 AN/APG-77

The F-22 Raptor uses the AN/APG-77 AESA radar.

It was developed around the requirements of a stealth air superiority fighter, where detection, tracking, electronic protection and emissions management are closely connected to survivability.

Northrop Grumman identifies the APG-77 and APG-81 as its AESA fire control radar systems for the F-22 and F-35 respectively.

F-16 AESA Upgrades

AESA technology is not limited to fifth generation aircraft.

The AN/APG-83 Scalable Agile Beam Radar, or SABR, provides modern AESA capability to upgraded F-16 fleets. Northrop Grumman says the system has been deployed in nine countries and is designed to provide a modern radar capability without requiring replacement of the entire aircraft.

This is strategically important because radar modernization can extend the useful combat life of existing fourth generation fleets.

AESA Radar in Naval Warfare

AESA technology has also become a major part of modern naval air defense.

Warships increasingly require sensors capable of tracking aircraft, cruise missiles, ballistic missile related threats and other objects while operating in complex electromagnetic environments.

The U.S. Navy’s SPY-6 family is a major example of the broader move toward modern digital array radar technology.

RTX announced in July 2026 that Raytheon received a $1.8 billion contract extension for SPY-6 radar hardware production and sustainment, with options that could increase the cumulative value to $3.3 billion.

The significance extends beyond the radar itself. Modern naval radar systems feed combat management systems and contribute to integrated air and missile defense networks.

AESA Radar in Ground Based Air Defense

AESA technology is also changing ground based air surveillance and counterfire systems.

The U.S. Army’s AN/TPQ-53 radar uses a software controlled AESA architecture and supports counterfire target acquisition, counter UAS operations and aircraft surveillance. Lockheed Martin says the system has been deployed in combat since 2010.

The U.S. Marine Corps’ AN/TPS-80 G/ATOR is another example. Northrop Grumman describes it as a multifunction radar capable of air surveillance, air defense and counterfire target acquisition. The system is designed to integrate with U.S., NATO and other command and control architectures.

This multifunction approach can reduce the need for separate sensors performing narrowly defined missions.

AESA Radar and Stealth Aircraft

AESA radar does not defeat stealth by itself.

Stealth aircraft are designed to reduce their radar cross section and control how electromagnetic energy is reflected toward hostile sensors.

The detection problem depends on many variables, including:

• Radar frequency
• Antenna aperture
• Transmitter power
• Target radar cross section
• Aspect angle
• Atmospheric conditions
• Signal processing
• Electronic warfare activity
• Target behavior
• Radar operating mode

An AESA radar can provide important advantages in detection and tracking, but claims that any specific AESA system can detect a particular stealth aircraft at a fixed publicized distance should be treated carefully.

Actual detection and engagement ranges are highly scenario dependent and many relevant parameters remain classified.

Low Probability of Intercept and Electronic Warfare

One of the most discussed AESA characteristics is low probability of intercept, or LPI, although the term should not be treated as meaning invisible radar emissions.

The objective is to make radar transmissions harder for an opposing electronic support system to detect, recognize and exploit.

This can involve combinations of waveform agility, frequency management, beam control, transmission scheduling and signal characteristics.

A modern AESA radar may also contribute directly to electronic warfare.

Northrop Grumman says the F-35’s AN/APG-81 can operate as an electronic warfare aperture and support electronic protection, electronic attack and electronic support functions.

This convergence between radar and electronic warfare is one of the most important trends in modern combat aviation.

AESA Radar vs. Mechanically Scanned Radar

The comparison should not be interpreted as meaning every AESA radar automatically outperforms every mechanically scanned radar. Radar performance is determined by the complete architecture and mission requirements.

AESA Radar: Key Data Summary

Public specifications for military AESA systems are often incomplete. Exact detection ranges, effective radiated power, sensitivity, electronic attack performance and detailed waveform characteristics are commonly classified or vary with operational configuration.

AESA Radar and NATO Networked Warfare

The value of an AESA radar increasingly depends on what happens to the information after detection.

Modern military operations are moving toward networked architectures in which aircraft, ships, ground radars, satellites, command centers and weapons systems exchange information.

This creates a distinction between sensor performance and kill chain performance.

A radar may detect and track a target, but the wider military system must then distribute, validate and act on that information.

A modern AESA sensor can therefore become one node in a larger network that includes:

• Fighter aircraft
• Airborne early warning aircraft
• Ground based air defense
• Naval combat systems
• Electronic warfare platforms
• Unmanned systems
• Command and control centers
• Tactical datalinks
• Precision weapons

Northrop Grumman emphasizes open architectures and interoperability across its modern radar portfolio, while its G/ATOR system is designed to operate with U.S., NATO and other command and control systems.

Operational Advantages in a Contested Electromagnetic Environment

Near peer warfare places increasing pressure on military sensors.

Potential threats include:

• Electronic jamming
• Deception techniques
• Passive detection systems
• Anti radiation weapons
• Long range precision fires
• Unmanned aerial systems
• Low observable aircraft
• Cruise missiles
• Hypersonic weapons
• Dense civilian and military electromagnetic activity

A modern AESA radar can help address some of these challenges through rapid beam management, frequency agility, advanced signal processing and electronic protection.

But AESA is not a standalone solution.

Survivability increasingly depends on emissions control, distributed sensing, mobility, deception, redundancy and networking.

Limitations and Challenges

Despite its advantages, AESA radar comes with significant engineering and procurement challenges.

Cost and Complexity

AESA arrays contain large numbers of sophisticated semiconductor modules and associated electronics.

The system also requires advanced cooling, power management, processing and software.

Thermal Management

High power electronics generate heat. Aircraft designers must balance radar performance against the limited electrical power and cooling capacity available on a fighter aircraft.

Software Dependence

Modern radar performance increasingly depends on software.

That creates opportunities for rapid capability upgrades but also introduces development, testing, cybersecurity and sustainment challenges.

Maintenance and Supply Chain

Although AESA eliminates many mechanical components, individual electronic modules and other components can still fail.

Large military fleets also require long term access to specialized semiconductor and electronic manufacturing capacity.

Classified Performance

Public comparisons are often difficult because key performance data remains classified.

This makes it risky to rank national radar systems using a single advertised detection range or power figure.

Future of AESA Radar

The next stage of AESA development is likely to involve greater integration between radar, electronic warfare and other sensors.

The distinction between radar and electronic warfare equipment is already becoming less clear.

Future systems are expected to place greater emphasis on:

• Digital beamforming
• GaN based transmit technology
• Advanced signal processing
• Artificial intelligence assisted signal classification
• Distributed sensing
• Multifunction apertures
• Electronic attack from radar apertures
• Open mission systems
• Software defined capabilities
• Sensor fusion
• Cooperative engagement

This trend is visible in current modernization programs.

RTX’s APG-82(V)X combines AESA technology, GaN and electronic warfare functions, while Northrop Grumman continues to develop AESA architectures for air, land and maritime applications.

The larger direction is clear: future radar systems will increasingly operate as software intensive multifunction sensors rather than standalone search devices.

Analytical Conclusion

AESA radar has moved from being a premium technology found mainly on advanced fighter aircraft to becoming a major architecture for modern military sensing across air, land and sea domains.

Its advantages come from the combination of electronic beam steering, solid state technology, rapid signal processing, multifunction operation and integration with electronic warfare and networked command systems.

For fighter aircraft, AESA can improve situational awareness and support air to air and air to ground missions. For ground forces, it can combine surveillance, counterfire and counter UAS functions. For naval forces, modern array radars are becoming central to integrated air and missile defense.

The strategic importance of AESA radar therefore extends beyond the radar antenna itself. Its real value emerges when the sensor is connected to a wider combat architecture capable of turning detection into a decision and, when authorized, a weapon engagement.

As the United States, NATO allies and other advanced militaries prepare for increasingly contested electromagnetic environments, AESA technology will remain a central component of military modernization. The next generation will likely focus less on simply detecting farther and more on processing information faster, surviving electronic attack, sharing data across domains and performing multiple missions from a common aperture.
